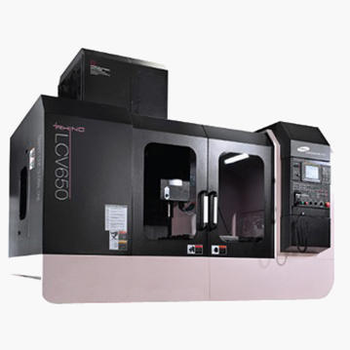

LCV 550/650
Box way type machining center for high degree of accracy workpicece
- High accuracy and durability, market approved ,machining center.
- High productivity for small mold of electric product.
Specification
| Item | LCV 650 | LCV 550 | |
| Travel | X-axis - mm | 1,350 | 1,150 |
| Y-axis - mm | 650 | 550 | |
| Z-axis - mm | 635 | 520 | |
| Distance from table top to spindle nose - mm | 200-835 | 150-670 | |
| Distance from pallet center to column - mm | 675 | 600 | |
| Table | Table size x T-Slot pitch - mm | 1,550 x 650 x P125 | 1,200 x 550 x P110 |
| Loading capacity - kg | 1,000 | 800 | |
| Spindle | Max. Spindle speed - min-¹ | 8,000(12,000) | |
| Spindle inner taper No. - 7/24 Taper | NT50(40) | ||
| Bearing inner diameter - mm | φ85(φ65) | ||
| Spindle drive motor - kw | 11/15/(11/15) | ||
| Spindle Torque(30min./cont.) - kg.m | 29.2/14.6(9.74/7.14) | ||
| Feedrate | Rapid traverse(X/Y/Z) - m/min | 24/24/20 | |
| Cutting feedrate (X/Y/Z) - mm/mim | 1-10,000 | ||
| Slide guide type - mm/mim | Box guide type | ||
| ATC | Tool shank | BT50(BT40) | |
| Pull stud type | MAS P50T-1(P40T`1) | ||
| Tool changing time(T-T) - sec | 2.8(2.5) | 2.5(1.8) | |
| Tool changing time(C-C) - sec | - | - | |
| Magazine capacity - ea | 24(30) | ||
| Tool selection - 형식 | Memory random | ||
| "Maximum tool weight/diameter/ length-adjacent empty" - kg/mm | 15/φ110/300(8/φ90/300)-φ200(φ150) | ||
| Motors | Coolant pump motor - kW | 0.4(0.9) | |
| Lubricant pump(for sliding surface) - W | 18 | ||
| Total power capacity - kVA | 30 | ||
| Muchine floor space - mm | 3,315x2,977 | 3,200x2,150 | |
| Mass of machine - kg | 11,000(10,900) | 7,000(6,800) | |
| CNC System | F-0iMD(31iA) | FANUC 0iM-D,31iA | |
