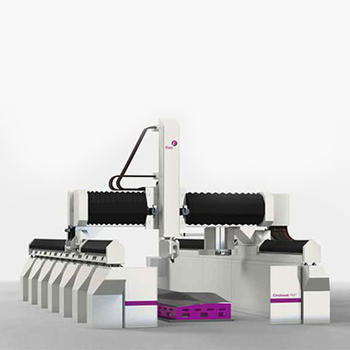

Cincinnati PMT Gantry Gantry Mill Large Part Manufacturing Solution תוצרת חברת Fives Cincinnati
Cincinnati PMT Gantry Gantry Mill Large Part Manufacturing Solution תוצרת חברת Fives Cincinnati

מכונת Cincinnati PMT תוצרת five

Cincinnati PMT



  • Process extremely large and complex parts
  • Balance performance with affordability
  • Produce precise parts in minimal time
  • Dynamic stiffness provides cutter path accuracy at high feed rates
  • Modular design offers a variety of ranges, spindles, and options



Cincinnati PMT (Precision Mill and Trim)

The Cincinnati PMT offers versatility, speed, accuracy and performance to manufacturers producing large parts from fiberglass, graphite composites, aluminum, and non-ferrous alloys. Whether applied to machine components for aircraft, wind power, mold, pattern, watercraft, or light rail industries, the PMT provides high performance in an affordable modular package. Built upon a rugged rail-type vertical spindle gantry platform, the PMT offers up to 60 m/min traverse speed to perform precision 5-axis and 5-sided maneuvering for milling, trimming, drilling and cutout operations

The PMT is a highly configurable manufacturing solution that can be customized to support a variety of special heads, such as waterjet, specialty coating and other finishing tools. The PMT is perfect for manufacturers wanting to increase productivity, improve quality and reduce manual labor costs


Machine Highlights

  • Large capacity and range to process extremely long, wide, or tall parts
  • 5-axis and 5-sided flexibility to process complex parts
  • Precision machining accuracy
  • Modular engineering; custom “build to order” configurations
  • Z-axis travels: up to 2 m ( 6.6 ft)
  • Y-axis travels: up to 6 m (19.7 ft)
  • X-axis travel: Unlimited, 1 m (3.2 ft) increments
  • Spindle options up to 30,000 rpm and 42 kW (56.3 hp)
  • Automated pressure foot option for precision drilling and countersinking
  • High efficiency spindle dust/chip vacuum system option
  • Choice of automatic tool exchangers / storage options
  • Coolant containment, supply and disposal systems option
  • Ergonomically friendly design provides reduced maintenance and lower operating costs


Specifications



  MetricInch
Range
X-axism / inUnlimited - 1 m incrementsUnlimited - 39 inch increments
Y-axism / in2, 3, 4, 5, 678, 118, 158, 197, 236
Y-axism / in1, 1.5, 239, 59, 79
Spindle Heads (S1 ratings)
24,000 rpm - Std.power / torque20 kW / 22 Nm26.8 hp / 16  lb-ft
Opt 1 - 24,000 rpmpower / torque34 kW / 39 Nm45.6 hp / 28.8 lb-ft
Opt 2 - 24,000 rpmpower / torque42 kW / 23 Nm56.3 hp / 16.9 lb-ft
Opt 3 - 30,000 rpmpower / torque34 kW / 39 Nm45.6 hp / 28.8 lb-ft
Opt 4 - 30,000 rpmpower / torque42 kW / 23 Nm56.3 hp / 16.9 lb-ft
Opt 5 - 18,000 rpmpower / torque20 kW / 30 Nm26.8 hp / 22.2 lb-ft
Spindle Features
Tool interfacestd / optHSK A63HSK A63
A-axis tiltDeg±110 (220)±110 (220)
C-axis rotation - Std.Deg±300 (600)±300 (600)
C-axis rotation - Opt.Deg±360 (720)±360 (720)
C-axis rotation - Opt.Deg360, Continuous360, Continuous
Tool Changer
Disk-typepockets18, 24, 4818, 24, 48
Rack-typepockets5-pocket modules5-pocket modules
Tool weightkg / lbs1022
Length x Diamm / in225 or 300 long x 100 dia8.9 or 11.8 long x 3.9 dia
Feedrates
X- and Y-axism/min  in/min40 or 601575 or 2364
Z-axism/min  in/min40575
A-axis and C-axisdpm / rpm18,000 / 5018,000 / 50
CNC Control System Siemens 840 sl, Fanuc 30iSiemens 840 sl, Fanuc 30i
