Cincinnati GEMINI Tape Laying and Fiber Placement Dockable Gantry System תוצרת חברת Fives Cincinnati
Cincinnati GEMINI Tape Laying and Fiber Placement Dockable Gantry System תוצרת חברת Fives Cincinnati

מכונה לעיבוד חומרים מרוכבים מסוג GEMINI תוצרת חברת Fives Cincinnati

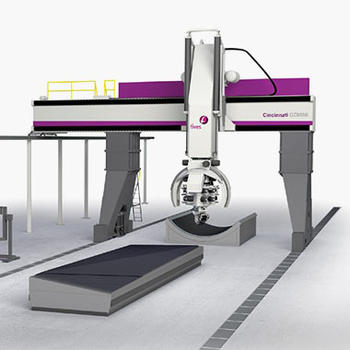

Cincinnati Gemini Dockable Gantry System

The Cincinnati GEMINI, another innovation from the company with more than 30 years experience developing and producing automated composites processing equipment



Dockable Head Options-Tape



  •   Cincinnati CHArGEr Tape Head - Fixed or Docking
  •   Forest Liné ATLAS 2 Stage Head - Fixed or Docking



Dockable Head Options-Fiber



Cincinnati VIPEr Fiber Placement Head - 16 tow 1/8 inch
Cincinnati VIPEr Fiber Placement Head - 16 tow 1/4 inch
Cincinnati VIPEr Fiber Placement Head - 16 tow 1/2 inch



Dockable Head Options-Other



Universal Docking System for limitless head designs



Specifications



X Axis Longitudinal
Speed4000 in/min   (100 m/min)
Acceleration60 in/sec2    (1.5 m/sec2)
repeatability

0.002 inch        (0.05 mm)

Accuracy (Compensated)0.005 in   (0.12 mm)
TravelInfinite, Expandable in 2M Inc.
Y Axis Traverse
Speed4000 in/min   (100 m/min)
Acceleration60 in/sec2    (1.5 m/sec2)
repeatability0.002 inch    (0.05 mm)
Accuracy (Compensated)0.005 in   (0.12 mm)
Travel14.4’ to 23.0’  (4.4 m to7.0m)
Vertical Axis (Z-Axis)
Speed2962 in/min (75 m/min)
Acceleration60 in/sec2    (1.5 m/sec2)
repeatability0.002 inch    (0.05 mm)
Accuracy0.005 in   (0.12 mm)
Travel78”’ to 118”’ (2.0 m to 3.0 m)
1st Rotary Axis (I-Axis)
Speed4000 deg/min
Acceleration60°/S^2
repeatability18 arcsec
Accuracy36 arcsec
Travel+/- 100 Degrees
2st Rotary Axis (J-Axis)
Speed3,800 deg/min
Acceleration60°/S^2
repeatability18 arcsec
Accuracy36 arcsec
Travel+/- 60 Degrees
3st Rotary Axis (K-Axis)
Speed9,000 deg/min
Acceleration400°/S^2
repeatability18 arcsec
Accuracy36 arcsec
Travel+/- 100 Degrees
