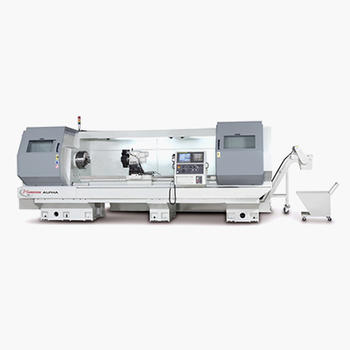

ALPHA 1400XS
ALPHA XS SERIES CNC COMBINATION LATHES
Specifications
| Definition | Value |
| Distance between centres (mm) | 1250 |
| Saddle stroke Z axis (mm) | 1156 |
| Swing over bed (mm) | 400 |
| Swing in gap (mm) | 585 |
| Gap width from faceplate (mm) | 165 |
| Swing over cross slide (mm) | 246 |
| Spindle bore (mm) | 55 |
| Spindle nose | Camlock D1-6 |
| Taperin nose bush | No.4 MT |
| Spindle speeds (rpm) | Low 1 to 297 |
| Mediuim 1 to 861 | |
| High 1 to 2700 | |
| Tailstock quill travel (mm) | 140 |
| Tailstock quill dia. (mm) | 73 |
| Floor to spindle cen. (mm) | 1086 |
