MC (Machining Center) Series pallet shuttle horizontal boring mills

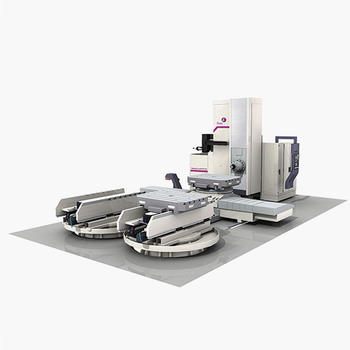

The MC Series adds machining center capabilities to Fives’ portfolio of Giddings & Lewis horizontal boring mills. Automate large part production and reduce non-cutting time with the MC Series standard two-pallet shuttle system and tool changer. Multiple pallet configurations are available.
Advantages of table-type horizontal boring mills
- Load parts while machining with the dual pallet shuttle MC Series boring mill.
- Rigid machining platform with one-piece column base and bed.
- High performance drive and way system provides both superior stiffness and allows fast traverse – 25 m/min.
- Modular design – select machine features and capabilities based on applications. Choose from three headstocks – two or four-speed, 130 or 155 mm diameter.
Specifications
| Machine specifications | MC 1250 | MC 1600 | |
| X-axis travel (mm) | 2500 | ||
| Optional X-axis travel (mm) | 3600 | ||
| Y-axis travel (mm) | 2100 | ||
| Optional Y-axis travel (mm) | 2600 / 3100 | 2600 / 3100 / 3600 | |
| W-axis travel (mm) | 1500 | ||
| Optional W-axis travel (mm) | 2000 / 2500 / 3500 | ||
| Feeds/rapid traverse (m/min) | 25 | ||
| Table size (mm) | 1250 x 1250 | 1600 x 1600 | |
| Optional tables (mm) | 1250 x 1600 1250 x 1800 | 1600 x 2000 1600 x 2500 | |
| Allowable table load (kg) | 15,000 | 25,000 | |
| Allowable pallet load (kg) | 7,000 | 15,000 | |
| Spindles – for all table-type HBMs there are three spindle choices | |||
| Two-speed | Four-speed | Four-speed | |
| Diameter (mm) | 130 | 130 | 155 |
| Speed (rpm) | 4000 | 3500 | 3500 |
| Power (kW) | 30 / 45 | 30 / 45 | 37 / 56 |
| Torque (Nm) | 1108 / 1662 | 4210 / 6190 | 5080 / 7695 |
| Z-axis travel (mm) | 800 mm | 1000 mm | 1250 mm |
Applications and operations
Oilfield, defense, aerospace and construction are just a few of the industries using the Giddings & Lewis MC Series boring mills to speed production. Our application engineers were instrumental in helping many of these customers develop the most productive solutions for their needs.
- The rigidity of Giddings & Lewis boring mills makes it possible to take heavy cuts.
- Programmable boring bars and contouring heads add machining versatility and reduce the number of tools needed by adding turning capabilities to live spindle HBMs and HMCs. The video demonstrates how these attachments handle a variety of part features.
Available options:
- Contouring heads and programmable boring bars.
- Right angle heads.
- High-pressure coolant through the spindle.
- Large capacity tool magazines.
- Tool and part probes.
- Controls – Siemens, Fanuc or Heidenhain.
